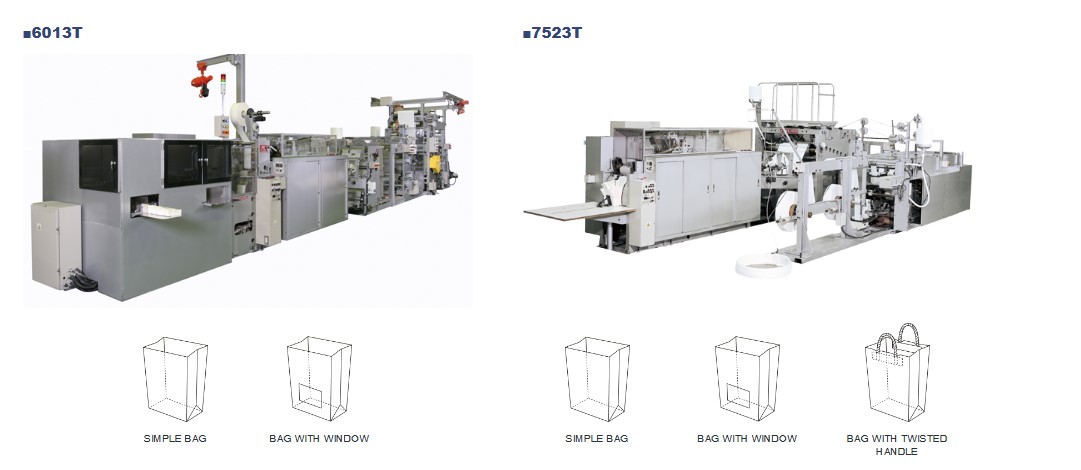

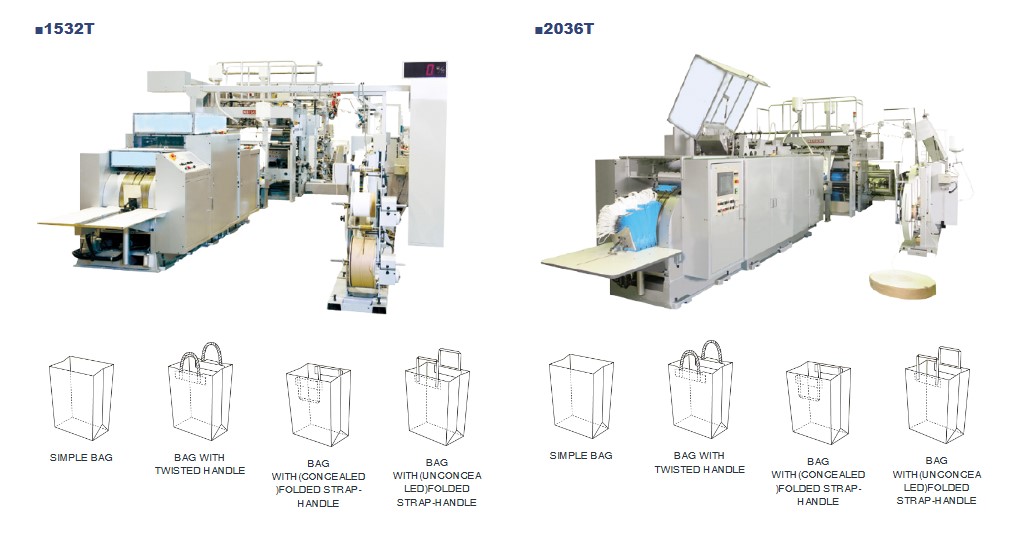

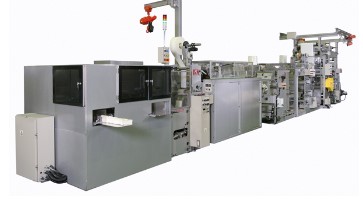

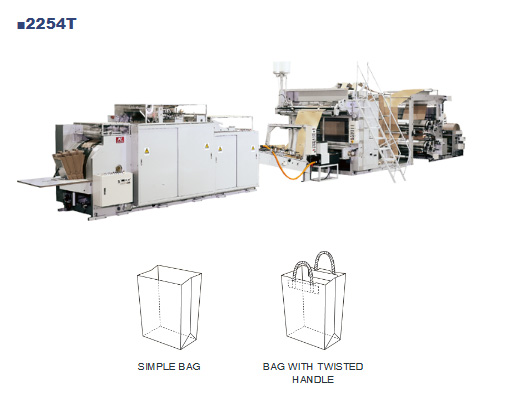

High speed Bag Making Machine reducing down time for size change

The models are designed specifically for high speed production and easy size change by servo-motor control (option).

Reducing down time for size change, bag size range becomes wider. The machine speed is increased comparing the old models. The new models provide various sizes of bags.

▶ Safety cover between tube forming and cutting for safety control

▶ Easy adjustment. Almost every adjustment can be done from the operator’s side.

▶ Uniquely designed to reduce downtime with quick size changes.

▶ High speed operation is insured by the newly designed smooth paper web flow.

▶ Capable of running preprinted paper rolls by using photo-cell device.

▶ Optional model number-TS (i.e. 6013TS etc.) is specified in case of change gear-less and shaft-less machines by servo-motors.

Catalog Download

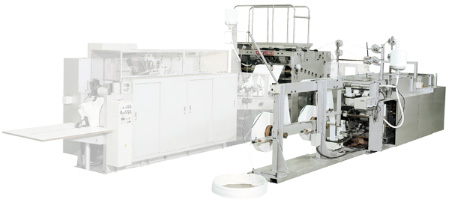

■ 500TH series twisted handle making unit (making and attaching)

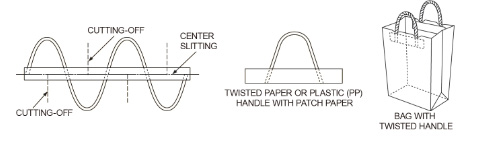

500TH series twisted handle making unit makes continuously handle by sandwiching the handle material with a patch paper which is then cut into

pieces for the specified size. 400H series attaching unit places the pieces inside the bag. Two types of handle is available,

such as twisted paper or twisted plastic material. Optional model number-HS (i.e. 460HS etc.) is specified by machine with servo-motors.

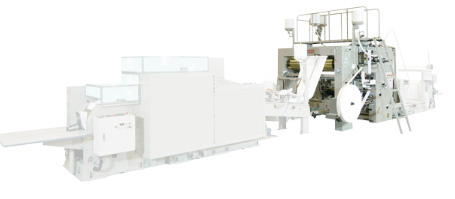

■ 500H series folded flat paper strap-handle making unit

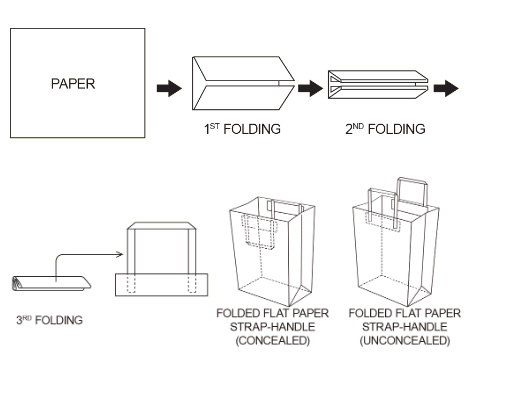

The flat paper tape is folded sequentially in one direction to make the 8-folded flat paper strap-handle.

This handle is then pasted inside the bag along with the paper patch.

This inward folding of the handle concealed in the bag as standard, allows the finished bags to easily handle.

Optional model number-HS (i.e. 508HS etc.) is specified by machine with servo-motors. Handle unconcealed type device is option.
