HR-4N
페이지 정보
본문
 |
|
Net

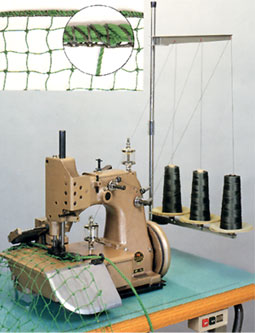

OverLock Machine
 |
| Max. Speed |
1,300 r.p.m. |
| Working Speed |
1,100 r.p.m. |
| Needle Bar Stroke | 65mm, Clearance between throat plate and needle point 36mm |
| Stitch Width | 6.5 ~ 13mm(standard setting 13mm) |
| Pope Diameter | Max. 13mm |
| Stitch Type | Single Needle, 3-Thread Overseaming Stitch |
| Feeding System | plain Feed and Puller |
| Machine Pulley Size | Ø163.8mm |
| Needle Type | DR x 4-#30(or #32) |
| Thread | Synthetic Thread |
